Precision EV Metal Stamping & Battery Power System Components
Accelerate your next-generation electrification projects with custom EV metal stampings engineered for extreme thermal and mechanical stress. As an IATF 16949 certified partner, we combine high-speed progressive die stamping , automated assembly, and in-house tooling to deliver ultra-tight toleranc…
Accelerate your next-generation electrification projects with custom EV metal stampings engineered for extreme thermal and mechanical stress. As an IATF 16949 certified partner, we combine high-speed progressive die stamping, automated assembly, and in-house tooling to deliver ultra-tight tolerances for high-voltage copper busbars, battery interconnections, precision lead frames, and protective EMI/RFI shields—from prototype validation to multimillion-part production.
Request DFM Evaluation
Can You Afford an EV Line Down?
In high-volume EV metal stamping, a micron-level pitch error or an unexpected micro-burr isn’t a minor tweak—it causes immediate OEM containment and halts automated assembly lines. Here are the critical failure modes that jeopardize IATF 16949 compliance and disrupt vehicle launch schedules.
Non-Linear Material Spring-Back & Tooling Instability
Processing high-tensile alloys, Beryllium Copper, and structural aluminum introduces unpredictable elastic recovery and localized thinning. Standard tooling often fails to compensate for batch-to-batch raw material hardness variations, causing dimensional drift during critical PPAP trials. Learn more in our guide on how to control springback in automotive brackets.
Consequence: Recurring die modifications, dimensional non-conformance, and catastrophic delays in vehicle production ramp-ups.
High-Speed Thermal Drift & Terminal Misalignment
During continuous, high-speed stamping of precision stamped electrical terminals, microscopic die wear and thermal expansion alter contact coplanarity and terminal true position. A variance of mere microns prevents proper mating in high-density electronic connectors and sensor arrays.
Consequence: Instantaneous automated downstream assembly line jams, costly containment protocols, and severe OEM delivery penalties.
Micro-Burrs & Insulation Breakdown in HV Busbars
High-voltage power distribution components and heavy-gauge copper busbars are highly susceptible to edge burrs and stress micro-fractures. In high-voltage environments, undetected micro-burrs puncture insulation barriers, while plating delamination causes contact resistance spikes. See our HV busbar molding case study for zero-defect field performance.
Consequence: Hidden electrical breakdown risks, severe quality escapes reaching field deployment, and devastating safety recalls.
Precision engineering requires more than machine capacity; it demands a technical partner capable of managing complex manufacturing requirements. Explore our precision manufacturing case studies to see how we systematically solve critical production challenges across OEM supply chains.
Tier 1 ManufacturingIntegrated EV Metal Stamping: Zero-Defect Precision at Mass Scale
We bridge the gap between initial DFM concepts and mass production. By consolidating advanced progressive presses, custom tooling, and continuous quality monitoring under one roof, we eliminate systemic supply chain risks and deliver OEM-compliant components on time.
High-Speed Precision & Heavy Stamping Fleet
We execute both ultra-high-speed terminal runs and heavy structural component stamping. Powered by advanced high-speed progressive die stamping lines, our automated equipment ensures absolute dimensional consistency across millions of stamped EV parts.
Flexible Capacity: High-speed press lines operating up to 1,000+ SPM for fine-pitch contacts and heavy-tonnage presses for structural parts.Real-Time Monitoring: Integrated in-die signature monitors and linear sensors eliminate dimensional variance before parts leave the press.In-House Tooling & Advanced EV Alloy Mastery
Before striking metal, our engineering team uses 3D CAD modeling and DFM stress simulations to map material behavior. We specialize in proprietary progressive die tooling development, expertly processing tough-to-form high-tensile metals and high-conductivity EV alloys without micro-fracturing.
Master Toolroom: In-house wire EDM tooling fabrication with predictive DFM simulation for spring-back compensation.Exotic Material Processing: Proven mastery of Beryllium Copper, Titanium Gr5, Inconel, Phosphor Bronze, and C11000 Copper.In-Die Automation & Integrated Molding Services
Streamline your multi-vendor supply chain with integrated secondary processes. We perform automated in-die tapping, hardware insertion, and carrier taping inside the press tooling, seamless alongside our insert molding services.
In-Die Secondary Operations: Integrated tapping, contact pin insertion, and automated reel-to-reel packaging.Supply Chain Consolidation: Single-SKU complex electromechanical components ready for immediate downstream line integration.Sensor-Driven Quality Assurance & Full Traceability
Operating under strict IATF 16949 protocols, our quality infrastructure prevents non-conforming parts from escaping the facility. We deploy inline vision systems and optical CMM inspection directly on press beds to inspect every stroke with complete traceability.
100% Inline Inspection: High-speed CCD vision inspection systems detecting micro-burrs and defects continuously at full press speed.Complete Traceability: Full raw material heat-batch tracking backed by full digital PPAP Level 1-5 compliance mapping.
Uncompromising Quality for Critical EV Metal Stampings
We safeguard the extreme dimensional accuracy and high-voltage conductivity of your EV battery interconnects, busbars, and electronic terminals. Operating under a certified IATF 16949 quality management system, we integrate high-speed CCD inline vision with real-time in-die sensor monitoring to eliminate defect escapes and guarantee zero-defect precision down to ±0.001 mm, validated by Zeiss CMM inspection.
View Quality StandardsMANUFACTURING ARCHITECTUREPrecision EV Metal Stampings Across Critical Vehicle Systems
From high-voltage battery modules to sub-micron electronic sensor connectors, our progressive die stamping technology produces the mission-critical micro-components that power electrification. We specialize exclusively in high-precision, intricate metal stampings—not heavy body panels or structural sheet metal.
EV Battery & High-Voltage Architecture
We manufacture high-conductivity, zero-defect copper and aluminum components essential for EV energy storage and high-voltage power distribution. Utilizing precision progressive stamping with automated burr control, our parts ensure optimal electrical efficiency, resistance to dielectric breakdown, and seamless integration into battery pack modules.
Key Components
Custom Stamped Busbars, High Voltage (HV) Busbars, Low Voltage (LV) Busbars, Battery Pack Terminals, Cell Contacting Systems (CCS), Anode & Cathode Current Collectors, Battery Disconnect Unit (BDU) Contacts, Inverter Shields, IGBT Cooling Plates, Fuse Clips, Battery Interconnects, Power Distribution Strips.
EV Electronics, Sensors & Connectivity
Specializing in miniaturization and high-speed electrical connectivity, we produce intricate terminal grids, lead frames, and RFI/EMI shields. Our continuous high-speed press lines maintain ultra-tight contact coplanarity and pitch accuracy, engineered for automated reel-to-reel plating and downstream assembly.
Key Components
Precision Lead Frames, ECU Connector Pins, Selective Plated Terminals, Press-Fit Pins (Compliant Pins), Wire & Cable Connectors, RFI/EMI Shielding Cans, Micro-Switch Contacts, Deep-Drawn Sensor Housings, Antenna Brackets, Sensor Retaining Clips, Eyelet Terminals.
Electric Drive, Powertrain & Thermal Management
We deliver high-precision stamped components designed to withstand severe thermal cycles and mechanical stress within e-motors, power electronics, and cooling loops. Engineered from premium alloys with tight tolerance limits, these parts prevent electrical interference and ensure uninterrupted energy transfer.
Key Components
Motor Lamination Stampings, Transmission Lead Frames, Stamped Heat Sinks, Capacitor Brackets, HV Connector Shields, Turbocharger Shielding Components, E-Motor Retaining Clips, Power Module Sub-Mounts, Thermal Interface Plates.
Safety, Chassis & Precision Mechanisms
Stamped from high-strength alloys and Advanced High-Strength Steels (AHSS), our safety-critical components guarantee structural integrity and precise mechanical fit. Backed by full raw-material-to-press lot traceability, these components meet strict zero-failure benchmarks under extreme operational loads.
Key Components
ABS Sensor Brackets, Precision Chassis Brackets, Compression Limiters, Seat Belt Anchors, Airbag Housing Stampings, Caliper Clips, Crush Bushings, Rolled Bushings, Structural Stiffeners, Seat Frame Clips.
Explore Our Precision Metal Stamped Parts & Custom Components
Stamped Brackets
EMI RFI Shield
Lead Frame
Metal Assemblies
Stamped Electrical Terminals
Eyelet Wire Connector

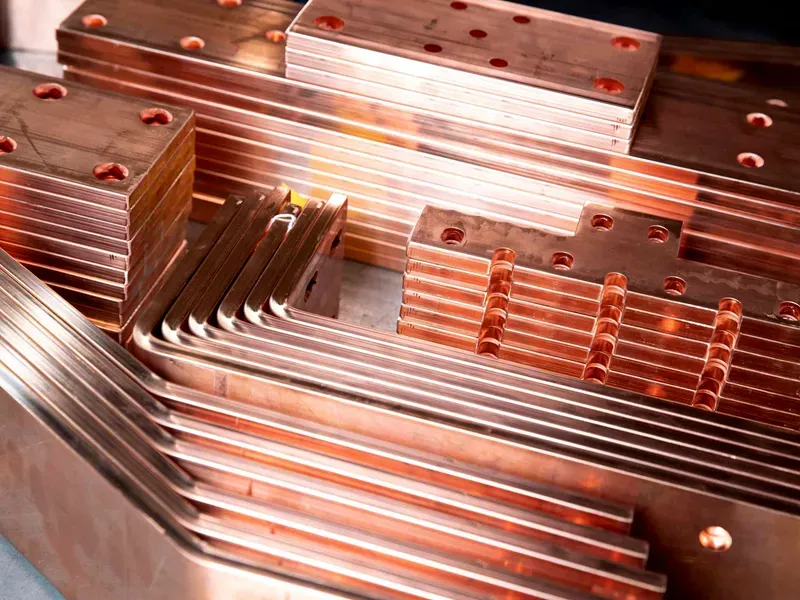

Stamped Busbars
Request DFM EvaluationExplore All ProductsMANUFACTURING CAPABILITIESIntegrated EV Metal Stamping & Engineering Capabilities
Driving the future of e-Mobility requires absolute mechanical precision, superior thermal management, and flawless electrical performance. We combine advanced high-speed progressive stamping with automated in-die insertion, precision plating, and real-time vision testing to deliver mission-critical EV components—from custom busbars and battery interconnects to motor laminations.
Request DFM EvaluationEngineered for extreme current density, minimal electrical resistance, and maximum thermal efficiency in EV battery packs and High-Voltage Power Distribution Units (PDUs).
Multi-Layer & Composite Stamping: Advanced stamping of high-conductivity C1100/C1020 coppers, electrical-grade aluminum, and bi-metal bonding for optimized conductivity-to-weight ratios.
In-Die Insulation & Overmolding Integration: Automated integration of dielectric coatings, powder coating preparation, and plastic housings directly within the press cycle via our insert molding services.
Continuous Reel-to-Reel Plating: Selective Silver (Ag), Nickel (Ni), and Tin (Sn) plating to guarantee superior laser/ultrasonic weldability and long-term corrosion resistance.
Ultra-Low Resistance Edge Quality: Fine-blanking and edge-conditioning techniques to eliminate micro-burrs and prevent dangerous high-voltage dielectric breakdown or arcing.
Ultra-precise stamping of silicon steel laminations and structural drive unit components designed to minimize iron core loss and withstand extreme mechanical torque.
High-Speed Interlocking Laminations: High-precision stamping of motor rotors and stators using ultra-thin silicon steel with sub-micron stacking tolerances.
Advanced High-Strength Steel (AHSS) Stamping: Precision forming of complex structural motor housings, transmission lead frames, and brackets up to 1500 MPa tensile strength.
In-Die Threading & Hardware Insertion: High-efficiency automated insertion of studs, nuts, and threaded fasteners directly during the stamping stroke.
Tight-Tolerance Flatness & Stress Relief: Proprietary stress-relief techniques ensuring flat, warp-free component profiles after high-tonnage press forces.
In-house tooling engineering utilizing 3D CAD (Siemens NX) and FEA simulation to optimize complex EV geometries, maximize material yield, and eliminate costly trial-and-error.
EV-Specific DFM Collaboration: Early-stage “co-engineering” with your design team to optimize pitch, strip layout, and manufacturability for battery and inverter parts.
Class-A Progressive & Transfer Dies: In-house design and fabrication of carbide-inserted progressive dies built for multi-million-stroke tool life and maximum OEE uptime.
Quick-Change Tool Insert Systems: Modular die designs enabling fast engineering change orders (ECOs) and flexible short-to-long batch production runs.
Waterjet & Laser Rapid Prototyping: 60,000 PSI abrasive cold-waterjet cutting and laser prototyping for rapid design validation without thermal stress or tooling investment.
Streamlining your vendor base by managing the complete lifecycle—from raw EV alloy sourcing to secondary sub-module assembly and JIT global distribution.
Automated Sub-Assembly & Joining: Ultrasonic welding, laser welding, automated riveting, and secondary robotics for complex multi-material EV assemblies and Current Collector Assemblies (CCA).
Specialty Material Sourcing: Direct supply access to C1100/C1020 copper, beryllium copper, phosphor bronze, electrical aluminum, titanium, and automotive steels.
E-Coat & Functional Surface Finishing: Complete oversight of functional coatings including KTL e-coating, anodizing, heat treatment, and dielectric powder coats.
VMI & Kanban Inventory Management: Flexible supply logistics tailored for seamless Just-In-Time (JIT) integration into OEM/Tier-1 assembly lines.
Uncompromising automotive quality assurance designed to achieve zero-defect, zero-PPM manufacturing across high-volume e-Mobility press lines.
100% In-Die Optical & Sensor Inspection: High-speed camera vision systems and multi-point laser sensors inspecting critical dimensions, pitch, and plating integrity in real time.
Automated Emergency Press Halting: Smart OEE press monitoring systems that instantly halt operations if material pitch or tool wear strays outside micro-level tolerances.
Full Lot Traceability & SPC Tracking: Complete raw material lot traceability and continuous Statistical Process Control (SPC) for every manufactured EV batch.
Advanced Metrology Lab: High-precision Zeiss CMM and OGP optical smart scope measuring systems ensuring total 3D dimensional compliance with GD&T standards.
PRODUCT APPLICATIONSIndustries Served
Discover how we translate precision engineering into industry-specific success. From renewable energy to semiconductor processing, our components are tailored to meet rigorous sector standards — backed by documented case studies.
EV Metal Stampings
Learn MorePlastic-Metal Stampings
Learn More
Solar
Learn More
Logistics
Learn More
Semiconductors
Learn More
Medical
Learn More
Consumer Electronics
Learn More
Aerospace
Learn More
Energy
Learn More
Defense
Learn More- MANUFACTURING CAPABILITIES
Metal Stamping & Die Tooling
Engineered for high-volume reliability and critical automotive tolerances. Leveraging our ultra-precision tooling backbone—powered by simultaneous CNC, Wire EDM, and PG grinding—we build elite high-speed progressive dies and precision compound tooling to guarantee strict ±0.01mm accuracy. Our in-house tool room designs and builds custom progressive die tooling optimized for high-volume assembly production, ensuring long die life and tight tolerances. From heavy-gauge structural brackets to intricate electrical terminals & contacts, we provide a true end-to-end stamping ecosystem. Our unique integrated manufacturing advantage seamlessly bridges pure metal stamping with advanced insert molding operations under one roof, delivering a unified, single-source solution from raw alloy selection to final surface treatment.
Learn More - MANUFACTURING CAPABILITIES
Precision Metal Stamped Parts & Assemblies
Engineered for critical conductivity and uncompromising structural integrity. As an IATF 16949 certified manufacturer, we specialize in high-volume custom precision metal stamping parts that demand strict tolerances. Powered by state-of-the-art 35T and 50T precision presses and a sub-micron in-house tooling ecosystem, we expertly process high-performance copper alloys, stainless steel, and specialty metals. Our capabilities span a comprehensive portfolio, including micro-precision electrical terminals, lead frames, robust stamped metal brackets, and EMI/RFI shields. Moving beyond standard stamping parts manufacturers, we combine these stamped metal components with seamless in-house insert molding integration, delivering true one-stop, zero-defect assemblies for your most complex engineering challenges.
Learn More
Engineering Solutions & Design Insights
Access expert technical guidance to optimize your component designs and resolve manufacturing challenges. Our engineering resources cover critical material selection, tolerance control, and failure prevention to ensure reliable performance in your specific application.
Before Plating Batch: Stamped Electrical Terminals Finish Audit Checklist
A supplier who plates your terminals but skips the JESD201 post-plating anneal will pass the incoming dimensional check. You discover tin whiskers only after field returns arrive. This checklist audits plating specification, pre-treatment protocols, and post-plating verification. Go through every item.
Learn More
Before PPAP Submission: Stamped Electrical Terminals Compliance Audit Checklist
A PPAP package submitted with a compliance letter but without the Cpk capability study will pass the document checklist and fail the customer SQE review. This checklist audits dimensional capability data, material cert traceability, and testing standards documentation before the submission package leaves your supplier. Go through every document.
Learn More
Before Die Design: Stamped Electrical Terminals DFM Readiness Checklist
A terminal drawing that passes CAD review but lacks springback compensation data will drift out of tolerance by stroke 50,000. Your supplier catches it only at first-article rejection. This checklist audits flat blank layout, bend radii, and material grain alignment before die steel is cut. Go through every item.
Learn More
Before Tooling Cut: Stamped Electrical Terminals Supplier Audit Checklist
A missed JESD201 anneal on your terminal lot triggers PPAP rejection, and you catch it only at the compliance audit. This checklist verifies DFM sign-off, material certs, and compliance docs before tooling cut. Go through the full audit.
Learn More
Production-Scale Consistency: Appliances Stamped Electrical Terminals Engineering Guide
A washing machine control board terminal passing factory testing fails after 2,000 cycles when the crimp joint relaxes. In this guide, you will learn cost-optimized material selection and UL 60335 compliance. Read the full guide.
Learn More
USCAR-Validated: Automotive Stamped Electrical Terminals Engineering Guide
An ECU stamped terminal passing testing at 25°C fails after 1,000 thermal shock cycles from -40°C to +125°C. In this guide, you will learn USCAR-2 contact stability and IATF 16949 PPAP. Read the full guide.
Learn MoreSERVICES LIBRARYExplore Other Industrial Metal Stamping Services Available
Defense Metal Stamping
High-speed progressive die stamping & insert molding for defense. Achieving ±0.01mm tolerances with DFARS-compliant Titanium, Inconel, and Beryllium Copper.
Learn More
Aerospace Metal Stamping
AS9100 certified source factory offering high-volume precision aerospace stamping and insert molding for Titanium, Inconel, and BeCu components.
Learn More

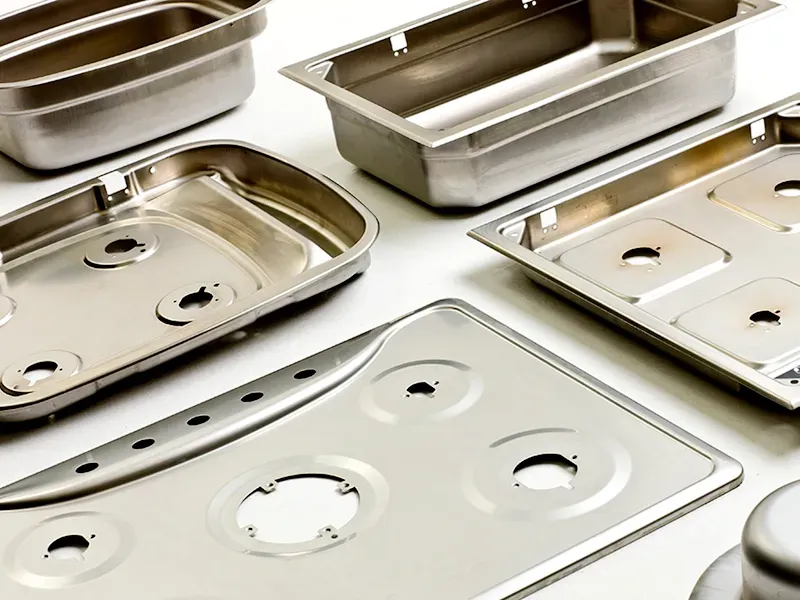

Consumer Goods Metal Stamping
Consumer brands require flawless aesthetics at high-volume production scales. Our progressive metal stamping delivers consistent quality and cost efficiency.
Learn More

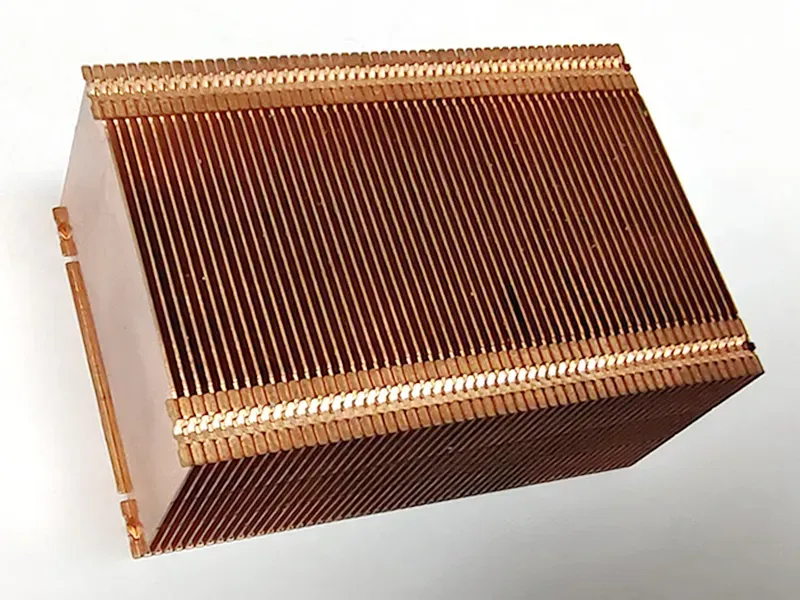

Telecom Metal Stamping
Telecom hardware requires superior signal integrity and thermal efficiency. Our stamping services provide consistent parts for global network infrastructure.
Learn MoreRequest DFM EvaluationAccess Industry DatabaseTECHNICAL REFERENCEFrequently Asked Questions
Answers to common questions regarding precision, tooling, materials, and our integrated molding capabilities.High-voltage EV systems (800V+) are extremely sensitive to burrs, which can pierce isolation films and cause dangerous dielectric breakdown or arcing. We employ specialized fine-blanking progressive die stamping combined with secondary automated mechanical/electrochemical deburring and in-line 100% optical camera inspection. This guarantees burr heights remain strictly under 10 microns, ensuring maximum clearance and insulation safety for battery module interconnects and custom busbars.
Yes. We offer continuous reel-to-reel selective plating (Silver, Tin, Nickel) engineered specifically for EV power electronics and battery cell tabs. By maintaining precise plating thickness tolerances (±0.5µm) and zero surface contamination, our stamped lead frames and current collectors ensure 100% stable laser and ultrasonic weldability without spatter or voiding.
Press-fit pins (compliant pins) require extreme pitch consistency and precise spring-back control to guarantee retention force in PCB hole arrays. Our high-speed Bruderer presses operate with high-precision progressive carbide tooling capable of holding pitch tolerances within ± 0.005 mm, fully compliant with automotive IEC/IPC insertion and retention force standards.
We integrate multi-layer copper/aluminum composite stamping with automated in-die thermal film lamination. Our engineering team conducts upfront FEA thermal-stress modeling to optimize heat dissipation channel profiles, enabling maximum current carrying capacity in compact EV Battery Disconnect Units (BDUs), Inverters, and laminated busbars.
To help OEMs and Tier-1s iterate quickly without upfront hard-tooling investment, we offer 60,000 PSI precision abrasive waterjet cutting and high-speed laser prototyping. This cold-cutting process preserves raw material metallographic structure without thermal heat-affected zones (HAZ), allowing functional testing of busbars, contacts, and custom progressive stamping designs in days rather than weeks.
Our progressive press lines are equipped with multi-point optical, inductive, and acoustic emission in-die sensors. They continuously monitor strip pitch, part ejection, force tonnage spikes, and material thickness variations in real time. If any anomaly occurs during ultra-high-speed stamping (up to 1,000+ SPM), the system triggers instant micro-second press braking to eliminate tool damage and zero-defect packaging.
We process non-oriented silicon steel coils using non-magnetic carbide dies and specialized synthetic vanishing oils. Our automated lamination lines utilize high-speed precision interlocking and servo-skewing to control stacking thickness, preventing iron core eddy current losses and maintaining strict magnetic domain integrity for e-motor stators and rotors.
Yes. Beyond micro-stamping, we provide end-to-end modular integration. Our secondary automated assembly lines utilize robotic pick-and-place, in-die nut/stud insertion, ultrasonic plastic welding, and insert molding services to deliver complete, ready-to-install Cell Contacting Systems (CCS) and junction box assemblies under a single part number.
Still have questions?
Our engineering team loves solving complex problems. Chat with us or send your drawing for a review.
Request DFM EvaluationReady to Manufacture With One Accountable Factory?
From in-house tooling to high-volume production — stamping, molding, plating and assembly under one IATF 16949 roof. Send your spec and volume, get a quote within 24 hours.
